Architectural design, floor plans and 3D elevation in Delhi NCR
The cheapest place to fix a house is on paper. A plan that puts the staircase in the wrong place, wastes 8% of the built-up area in corridors, or ignores the sun on the west wall costs lakhs to live with and lakhs more to change. GharVistar's design studio produces floor plans, 3D elevations, structural drawings, MEP layouts and municipal sanction drawings in Delhi NCR — for our own construction clients and for anyone who wants a proper design before they choose a builder.
Every plan starts with your plot dimensions, orientation, the road side, neighbours' walls and the family's actual life — who cooks, who works from home, whether parents will live on the ground floor, whether a floor will be rented. Then it is checked against Vastu (if you want it), the applicable building bye-laws for setbacks, coverage and height, and the structural grid so the columns land where they should.
We have drawn plans for 20 × 45 ft Delhi plots and for 2-acre farmhouses; the discipline is the same — every square foot must earn its place.
Design packages and fees
| Package | Includes | Fee | Delivery |
|---|---|---|---|
| Floor plan only | 2D plans for all floors, one revision round, Vastu check | From ₹8,000 (up to 1,500 sq ft) | 5–7 days |
| Plan + 3D elevation | Floor plans, front 3D elevation in two styles, material palette | ₹12–18 per sq ft | 10–14 days |
| Full working drawings | Plans, elevations, sections, structural, plumbing, electrical, door-window schedule, sanction drawings | ₹22–35 per sq ft | 3–4 weeks |
| Sanction filing | Drawings signed by licensed architect, filing with the local development authority (Noida Authority, GNIDA, GDA, MCD, MCG, HSVP or the municipal corporation), follow-up to approval | ₹15,000–40,000 + govt fees | 4–8 weeks |
| Interior design | Room-wise 3D, furniture layout, ceiling, lighting, material boards | ₹40–80 per sq ft | 3–5 weeks |
Design fees are adjusted against the construction contract if you build with GharVistar.
What a complete drawing set contains
- Site plan with setbacks, coverage and FAR calculation per the applicable building bye-laws
- Floor plans for every level including stilt, mumty and terrace
- Front, side and rear elevations; two sections through stairs and wet areas
- 3D exterior renders — day and night — and optional walk-through video
- Structural drawings: foundation layout, column schedule, beam and slab reinforcement
- Plumbing: water supply, drainage, tank and sump positions, rainwater harvesting
- Electrical: point layout, DB schedule, conduit routing, AC and inverter provisions
- Door and window schedule with sizes and materials
- Staircase, railing, gate and grill details
- Vastu compliance note and sun-path study
Popular plot sizes we design for in Delhi NCR
plots from 50 sq yard builder-floor sites to 1-acre farmhouses. Some of the most requested layouts: a 20 × 45 ft plot with parking, drawing-dining and three bedrooms over three floors; a 25 × 50 ft duplex with a family lounge and terrace; a 30 × 60 ft G+2 with a rentable ground floor; and a 200 sq yard stilt + 4 builder floor with 3 BHK per floor. Each plan is drawn fresh for your plot, not pulled from a catalogue.
Architectural Design & Planning: what people ask for most
House naksha and floor plan design
A floor plan starts from your plot size, road side and family needs, then checks setbacks, ground coverage and height under the local bye-laws. You get the plan, furniture layout and room sizes before any elevation work.

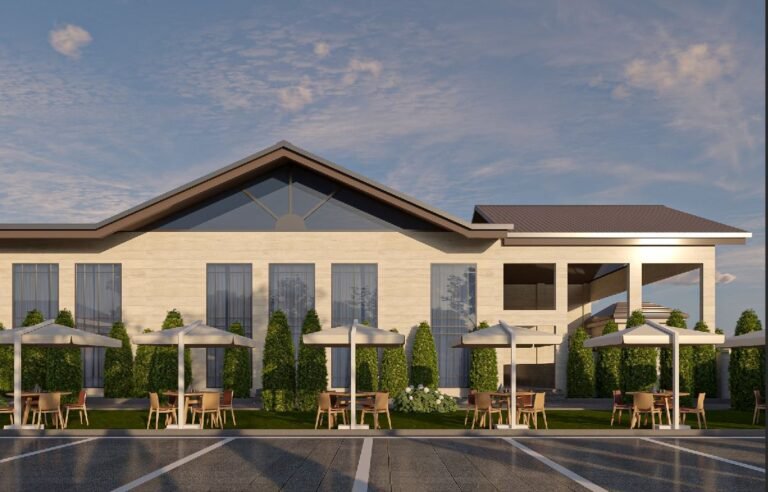

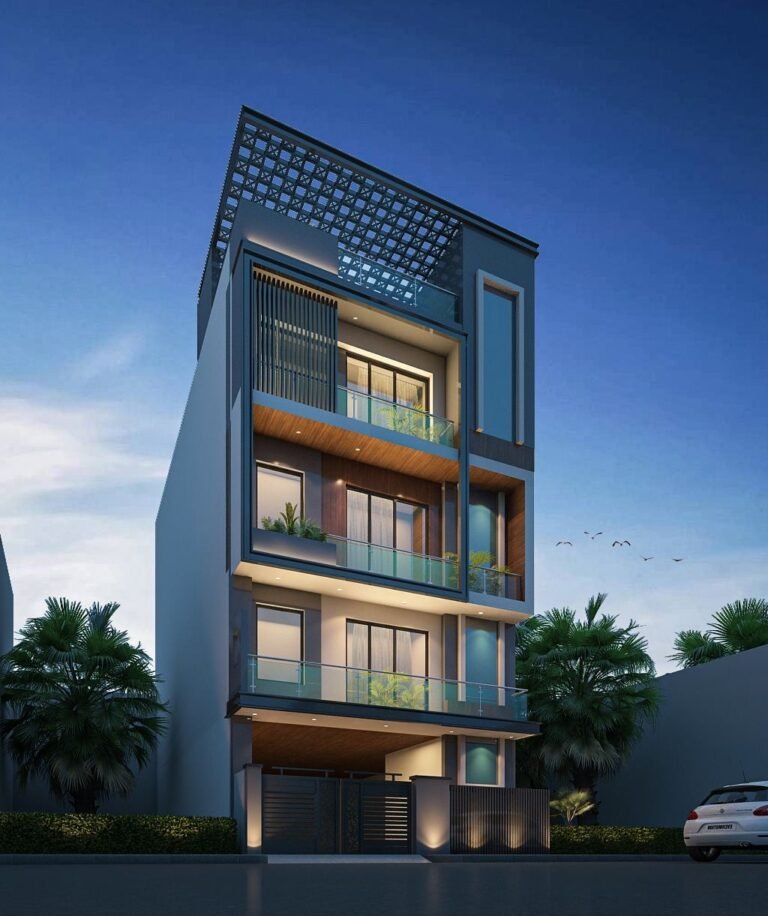

3D elevation design
The front elevation is designed in 3D with real materials (cladding, railing, paint, glazing) so you see the finished house before construction and the elevation is priced into the BOQ, not added later.
Map approval (naksha pass) in Delhi NCR
Building plans are sanctioned by Noida Authority, GNIDA, GDA, MCD, MCG or HSVP depending on where the plot is. We prepare the sanction drawings and follow the file to approval; government fees are billed at actuals. Our building plan approval guide for Delhi NCR compares the rules, coverage and FAR by authority.
Architect fees
Fees depend on built-up area and the drawing set you need. The architect fees calculator shows plan, elevation, working drawings, structure and sanction fees separately.
Architectural design in Noida, Gurugram, Delhi and across NCR
Architectural design in Greater Noida
We take architectural design work across Greater Noida, including Sector Alpha 1, Sector Alpha 2, Sector Beta 1, Sector Beta 2, Sector Gamma 1. Plans here are sanctioned by Greater Noida Industrial Development Authority (GNIDA), and our standard construction rate in Greater Noida is ₹2,200 per sq ft. See house construction in Greater Noida and construction cost in Greater Noida.
Architectural design in Noida
We take architectural design work across Noida, including Sector 15A, Sector 19, Sector 20, Sector 21, Sector 25. Plans here are sanctioned by New Okhla Industrial Development Authority (Noida Authority), and our standard construction rate in Noida is ₹2,300 per sq ft. See house construction in Noida and construction cost in Noida.
Architectural design in Greater Noida West
We take architectural design work across Greater Noida West, including Gaur City 1, Gaur City 2, Sector 1, Sector 2, Sector 4. Plans here are sanctioned by GNIDA, and our standard construction rate in Greater Noida West is ₹2,150 per sq ft. See house construction in Greater Noida West and construction cost in Greater Noida West.
Architectural design in Ghaziabad
We take architectural design work across Ghaziabad, including Indirapuram, Vaishali, Vasundhara, Kaushambi, Raj Nagar Extension. Plans here are sanctioned by Ghaziabad Development Authority (GDA) and Nagar Nigam Ghaziabad, and our standard construction rate in Ghaziabad is ₹2,100 per sq ft. See house construction in Ghaziabad and construction cost in Ghaziabad.
Architectural design in Delhi
We take architectural design work across Delhi, including Dwarka, Rohini, Pitampura, Janakpuri, Vasant Kunj. Plans here are sanctioned by Municipal Corporation of Delhi (MCD) and DDA, and our standard construction rate in Delhi is ₹2,400 per sq ft. See house construction in Delhi and construction cost in Delhi.
Architectural design in Gurugram
We take architectural design work across Gurugram, including DLF Phase 1, DLF Phase 2, DLF Phase 3, DLF Phase 4, DLF Phase 5. Plans here are sanctioned by DTCP Haryana, Municipal Corporation of Gurugram (MCG) and GMDA, and our standard construction rate in Gurugram is ₹2,450 per sq ft. See house construction in Gurugram and construction cost in Gurugram.
Architectural design in Faridabad
We take architectural design work across Faridabad, including Sector 7, Sector 8, Sector 9, Sector 10, Sector 11. Plans here are sanctioned by HSVP, Municipal Corporation of Faridabad (MCF) and DTCP Haryana, and our standard construction rate in Faridabad is ₹2,100 per sq ft. See house construction in Faridabad and construction cost in Faridabad.

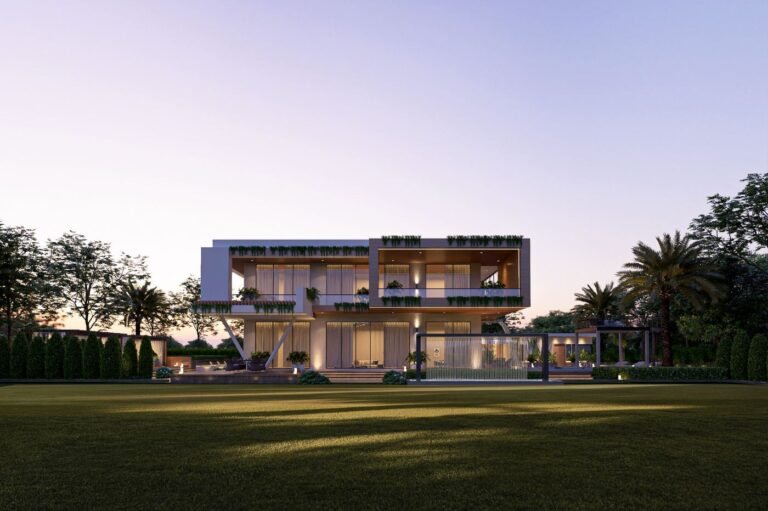

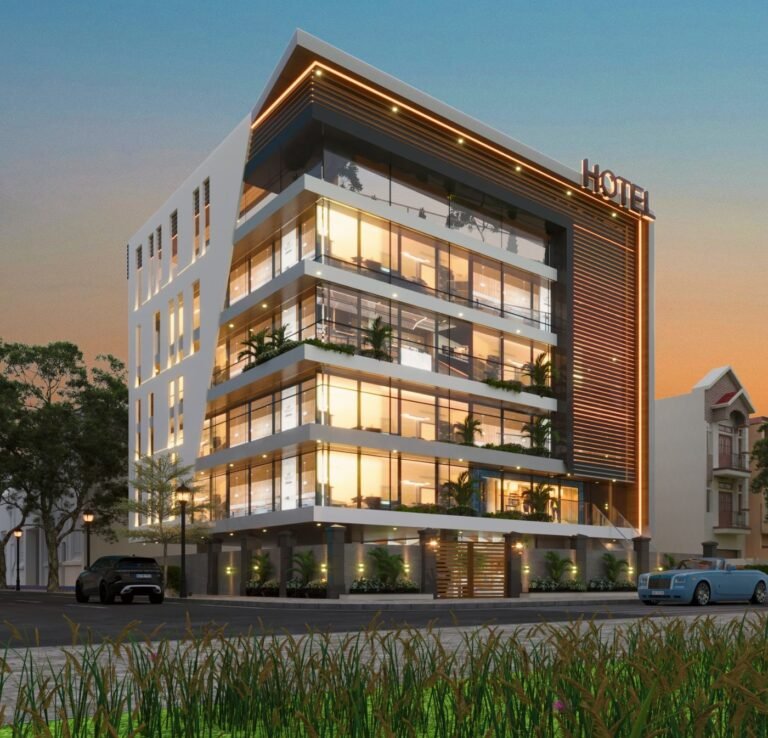

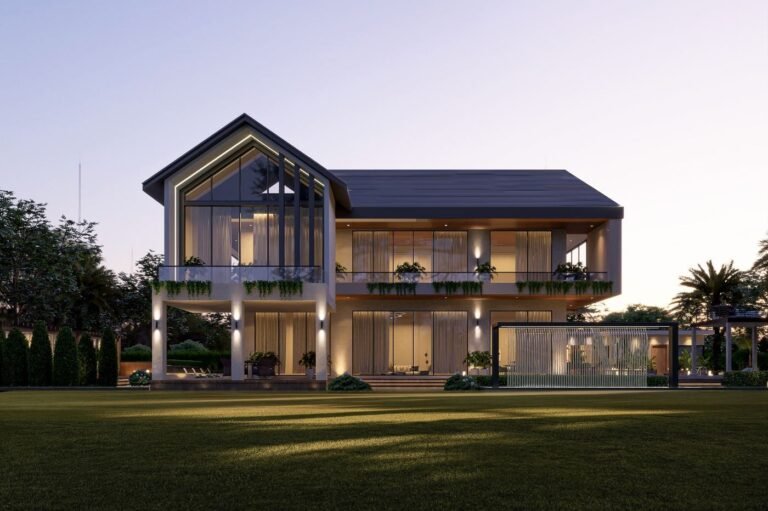

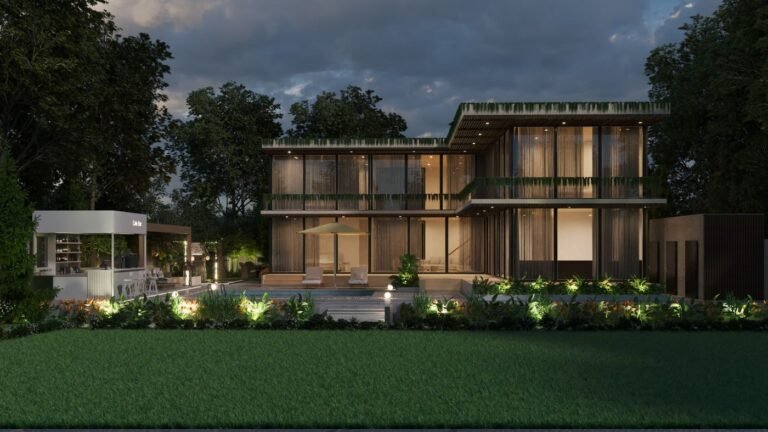

Projects and designs
What you get that a local thekedar cannot give you
Written BOQ before you sign
Every item, quantity, brand and rate on paper. The rate you sign is the rate you pay; changes are priced in writing first.
10-year structural warranty
RCC frame, foundation and slabs for ten years, waterproofing for five, finishing for one — in the contract.
Site engineer every day
Our own engineer on your plot daily, weekly photo reports on WhatsApp, cube tests on every slab.
Stage-wise payments
Pay only for completed stages. Schedules mapped to home-loan disbursements.
Approvals handled
Map sanction, structural certificate, fire NOC, completion certificate — filed and followed up by us.
GST invoice, registered company
A company with an office at B-705, Victory One Central, Sector Omega 1, Greater Noida, Uttar Pradesh 201310, not a phone number that stops answering.
Construction cost calculator
Move the sliders for an instant estimate, then send it to us on WhatsApp for a free site visit.
Advanced options — floors, soil, flooring, add-ons
Architectural design: a practical guide for 2026
Vastu-compliant floor plans, 3D elevations, structural drawings, MEP layouts and municipal drawings for sanction. The rate, the approvals and the ground change from city to city, which is why every city has its own architectural design page: NCR plots follow Noida Authority, GNIDA, GDA, MCD, MCG and HSVP rules on alluvial soil.
Pick your city below for local rates, localities we serve, authority-specific paperwork and a calculator pre-set to that market.
Checklist before you sign any architectural design contract
- Item-wise BOQ with brand names and quantities — not a lump sum
- Dated timeline with a delay clause
- Stage-wise payments released against completed work
- Written warranty terms
- Who supervises daily, and how progress is reported
- Company registration, GST number and an office you can visit
Architectural design: frequently asked questions
How much does a house plan cost in Delhi NCR?
Floor plans start at ₹8,000; plans with a 3D elevation cost ₹12–18 per sq ft; a complete working-drawing set for construction and sanction costs ₹22–35 per sq ft.
Do you make Vastu-compliant plans?
Yes. Every plan is checked against Vastu on request — entrance direction, kitchen, master bedroom, pooja room and water placement — without wasting area.
Can you get the map sanctioned in Delhi NCR?
Yes. Our licensed architect files with the local development authority (Noida Authority, GNIDA, GDA, MCD, MCG, HSVP or the municipal corporation) and follows up to approval; government fees are at actuals.
Can I use your drawings with another contractor?
Yes. The drawing set is yours. If you later build with GharVistar the design fee is adjusted against the construction contract.
Do you provide 3D walkthrough videos?
Yes, as an add-on to the 3D elevation package, for exterior and interior.
How much does an architect charge in Delhi NCR?
Architects in Delhi NCR charge 3–8% of construction cost for full design and supervision, or a fixed fee: GharVistar charges ₹12–18 per sq ft for plans plus 3D elevation and ₹22–35 per sq ft for complete working drawings, adjusted against the construction contract if you build with us.
What documents are needed for map sanction in Delhi NCR?
Ownership proof (sale deed / allotment letter), latest property tax receipt, site plan, architect-signed drawings, structural stability certificate, and for larger plots an NOC from fire and the water board. the local development authority (Noida Authority, GNIDA, GDA, MCD, MCG, HSVP or the municipal corporation) approves the file online in most cases.
What is a Vastu-compliant house plan?
A plan where the main entrance, kitchen, master bedroom, pooja room, water source and staircase are placed by Vastu directions — typically kitchen in the south-east, master bedroom south-west, pooja north-east — without wasting built-up area. We check every plan on request.
What is FAR and ground coverage in Delhi NCR?
Ground coverage is the percentage of the plot you may build on at ground level; FAR (floor area ratio) is the total built-up area allowed divided by the plot area. Under the applicable building bye-laws both depend on plot size and road width; we confirm the exact figures for your plot before drawing.
Which cities do you cover?
Delhi, Noida, Greater Noida, Greater Noida West, Ghaziabad, Gurugram and Faridabad in NCR, plus nearby sites in Delhi NCR.
Where is your office?
B-705, Victory One Central, Sector Omega 1, Greater Noida, Uttar Pradesh 201310
How do I get an estimate for architectural design in Delhi NCR?
Send your plot size, locality and the number of floors on WhatsApp to +91 88102 41145, use the estimate assistant on this page, or the construction cost calculator. You get a per sq ft estimate today and a free site visit within 48 hours.
Do you give a GST invoice?
Yes. GharVistar is a registered company; every payment is invoiced with GST, which is also what banks and employers ask for.
What is the payment schedule?
10% at booking and design, 15% at foundation, 15% at each slab, 15% after brickwork and plaster, 15% after flooring and MEP, 10% after paint and fittings, 5% at handover. Interior, kitchen and woodwork projects are 40% on order, 40% at delivery, 20% at handover.
Can I visit the site during construction?
Any time. You also get a weekly photo report on WhatsApp and can send your own engineer to inspect at any stage.
What warranty do you give on architectural design?
Drawings are revised free until sanction; structural drawings are certified by a licensed engineer.
